big chocolate conche and refiner
big chocolate conche and refiner
Model
DR-JMJ3000

Item specifics

Type
chocolate machine
After-sales Service Provided
Engineers available to service machinery overseas
chocolate machine
chocolate conche

Review

Description

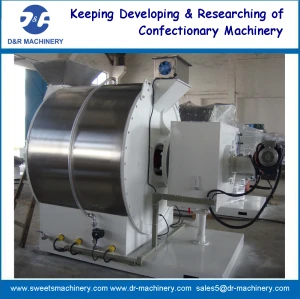

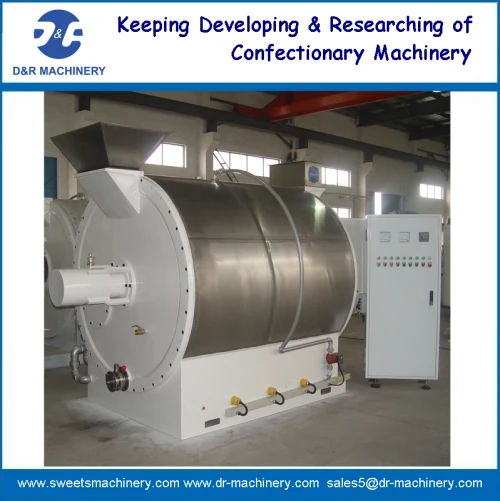

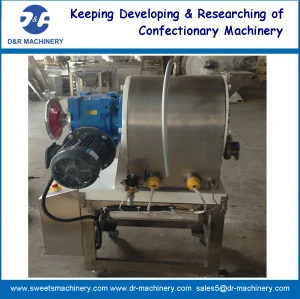

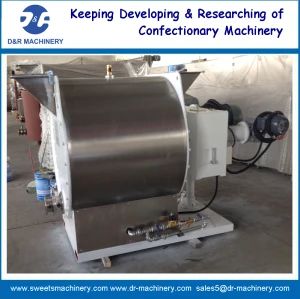

Chocolate conche and refiner

There is ventilating fan or a hopper on the top of tank , surface cover is carbon steel with paint or ss304 shell.

The material of the lining bars, scrapers are 65Mn after heating treatment, it can prelong their life. The base and gearbox are cast iron, so it will be more stable and can make sure the  fineness degree. The jacket tank is iron and heated by electricity.

The electric components in the electric cabinet are Renmin brand(China). Main motor and small motor to control the distance between scrapers and lining bars are the brand of China.

Technical data

Thetank of chocolate conche is jacket, it is heated by electric heating tubes. Thebehind cover is installed with the ventilating fan, surface cover (shell) is SUS304,others are made by carbon steel with paint.

The material of thelining bars and scrapers(blades) are 65Mn after heating treatment, it canprelong their life. The base and gear box are cast iron, so it will be morestable and can make sure the  fineness degree.

Technical data

Model

Max . capacity(L)

Finesse degree (μm)

WorkingTime(h)

power(kw)

Weight

(kg)

Dimension

(mm)

JMJ40

40

25-20

7-9

2.2+2

360

1100*800*1100

JMJ500A

500

25-20

12-16

15+6

2800

2500*1080*1370

JMJ1000A

1000

25-20

14-18

22+6

3500

2780*1330*1800

JMJ2000

2000

25-20

16-20

37+9

5300

3320*2000*1950

JMJ3000

3000

25-20

18-22

55+9

8500

4200*2000*1950
