chocolate refiner and conche
- Model
- DR-JMJ
Item specifics
- Type
- chocolate machine
- After-sales Service Provided
- Engineers available to service machinery overseas
- chocolate machine
- chocolate conche
Review
Description

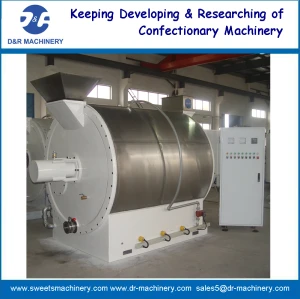

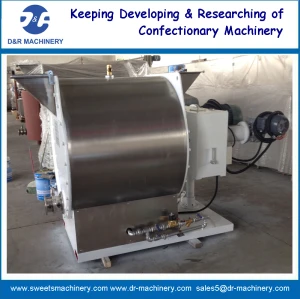

Chocolate refiner and conche
There is ventilating fan or a hopper on the top of tank , surface cover is carbon steel with paint or ss304 shell.
The material of the lining bars, scrapers are 65Mn after heating treatment, it can prelong their life. The base and gearbox are cast iron, so it will be more stable and can make sure the fineness degree. The jacket tank is iron and heated by electricity.
The electric components in the electric cabinet are Renmin brand(China). Main motor and small motor to control the distance between scrapers and lining bars are the brand of China.
Technical data
Thetank of chocolate conche is jacket, it is heated by electric heating tubes. Thebehind cover is installed with the ventilating fan, surface cover (shell) is SUS304,others are made by carbon steel with paint.
The material of thelining bars and scrapers(blades) are 65Mn after heating treatment, it canprelong their life. The base and gear box are cast iron, so it will be morestable and can make sure the fineness degree.
Technical data
Model | Max . capacity(L) | Finesse degree (μm) | WorkingTime(h) | power(kw) | Weight (kg) | Dimension (mm) |
JMJ40 | 40 | 25-20 | 7-9 | 2.2+2 | 360 | 1100*800*1100 |
JMJ500A | 500 | 25-20 | 12-16 | 15+6 | 2800 | 2500*1080*1370 |
JMJ1000A | 1000 | 25-20 | 14-18 | 22+6 | 3500 | 2780*1330*1800 |
JMJ2000 | 2000 | 25-20 | 16-20 | 37+9 | 5300 | 3320*2000*1950 |
JMJ3000 | 3000 | 25-20 | 18-22 | 55+9 | 8500 | 4200*2000*1950 |
