sugar weighing and dissolving system
| Group | Mogul Plant |
|---|---|
| Min. Order | 1 set |
| Terms of Payment | T/T |
| Update Time | 2015-08-11 |
| Condition | New |
|---|---|
| Application | Candy |
| Voltage | 380v |
| Power(W) | 3kw |
| Weight | 1000kgs |
| Dimension(L*W*H) | 2mx1.5mx2.5m |
| Certification | CE |
| Warranty | 1year |
| After-sales Service Provided | Engineers available to service machinery overseas |
| machine | Automatic weighing and dissolving |
- Description
- Product review

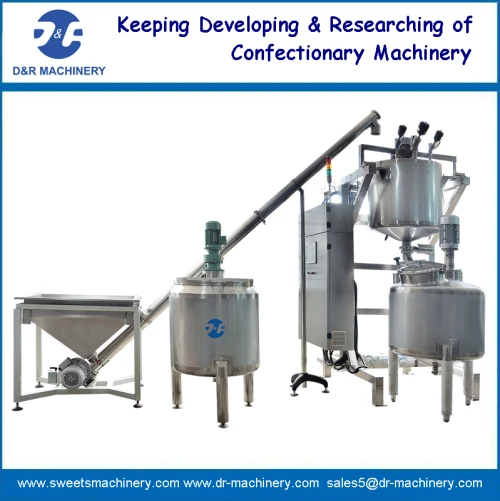

automatic weighing and dissolving system
| model no. | afd-11 | afd-12 |
| capacity | 600-750kgs/hour | 1200-1500kgs/hour |
| power | 14.7 | 17.7kw |
| compressed air | 400 | 500 |
| steam consumption | 100 | 200 |
| steam pressure | 8bar | 8bar |
| mixing tank | 280 | 280 |
| dissolving tank | 320 | 320+320 |
| liquid valve | as per customer's | |
| dimension | 2100x1400x3060 | 2100x1800x3060 |
| weight | 1000 | 1300 |
PURPOSE AND CHARACTERISTIC

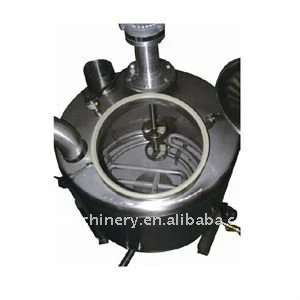

The warmmix is a weighing and mixing plant,electronically controlled with a micro processor,for the preparation of a pre-heated slurry necessary for the production of gums and jelly. The jacketed weighing vessel is mounted in a frame on a 3 point load cell assembly The lower holding vessel has a heating coil within it to keep the premix at the correct temperature. The warmmix is available in a sophisticated version with PLC control system and operation screen or a dedicated batch weighing controller (economy execution).
The warmmix can be used in conjunction with a thermal oil heat exchange system or guarantee the correct premix temperature with a minimal temperature difference between premix and heating mdeium.
